Description
FP ESS (Fuses for energy storage systems) fuses are designed specifically for DC networks with high voltage and short circuit levels.
- They perfectly meet the requirements of energy storage applications and ensure optimal protection of battery racks and battery connection panel (BCP) against short circuits and overloads
- Advantages
- Premium performance for energy storage
- FP ESS fuses have been specially developed to meet the requirements of Energy Storage applications
- they are sized for installations with potential short-circuit currents of up to 250 kA and continuous voltages of up to 1500 VDC
- these fuses offer increased reliability, ensuring consistent performance over time. Their silver-based composition protects them from premature ageing, making them perfectly suited to the cyclic operations characteristic of energy storage application
- A range for a multitude of designs
- The FP ESS fuse range covers requirements from 160 to 3000 A, several mounting types and complies with UL, CSA and IEC standards
- Combined with the advice of our experts, manufacturers are guaranteed to find the most suitable technical solution by limiting the energy transmitted to the Energy Storage system as much as possible in the event of a fault
- Certified coordination
- Combining load break switches with FP ESS fuses enables us to surpass industry standards for protection and safety
- Socomec conducts rigorous real-world testing on this combination to push the boundaries of performance and safety even further
- Strong Points
- Premium performance for energy storage
- A range for a multitude of designs
- Certified coordination
- 61S22050 ETIM - Electrical characteristics
- Voltage type: DC
- Rated current [A]: 500
- Rated voltage DC [V]: 1500
- Rated switching capacity DC [kA]: 250
- Utilization category: aR (accompanied semiconductor protection)
- Power loss at rated current [W]: 183
| Part Number | Poles | Description | Order in Multiples of |
| 61S22050 / 61S2 2050 | 1 | Fuse ESS Frame 2 500A BOLTED | 8 |
| 61S33080 / 61S3 3080 | 2 | Fuse ESS Frame 3 800A FLUSH | 6 |

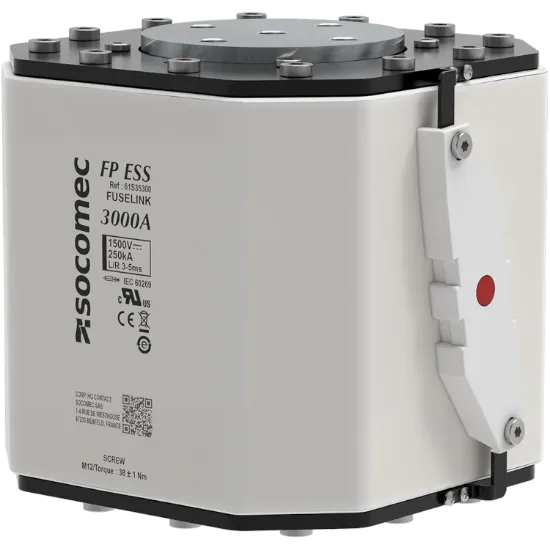

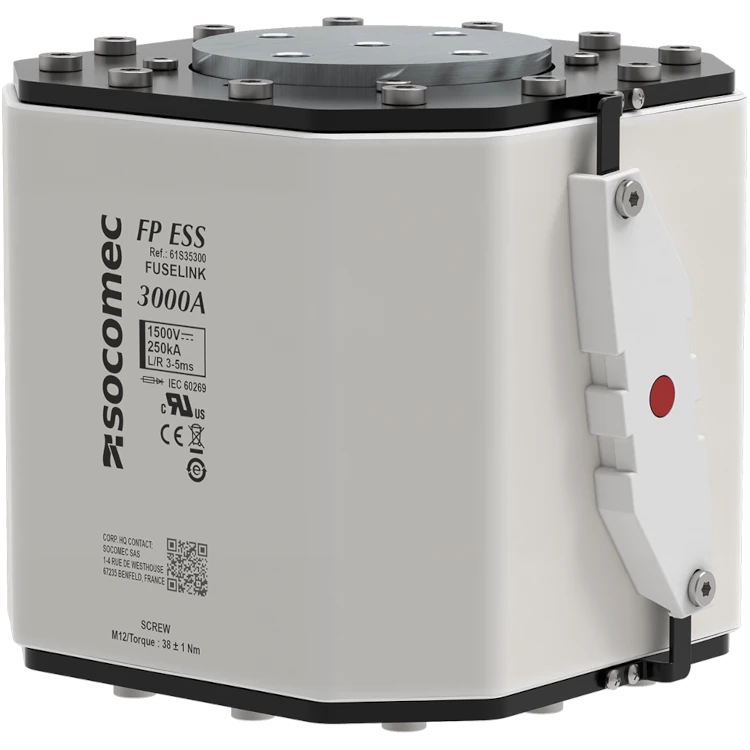

| 61S35300 / 61S3 5300 | 3 | Fuse ESS Frame 5 3000A FLUSH | 1 |
